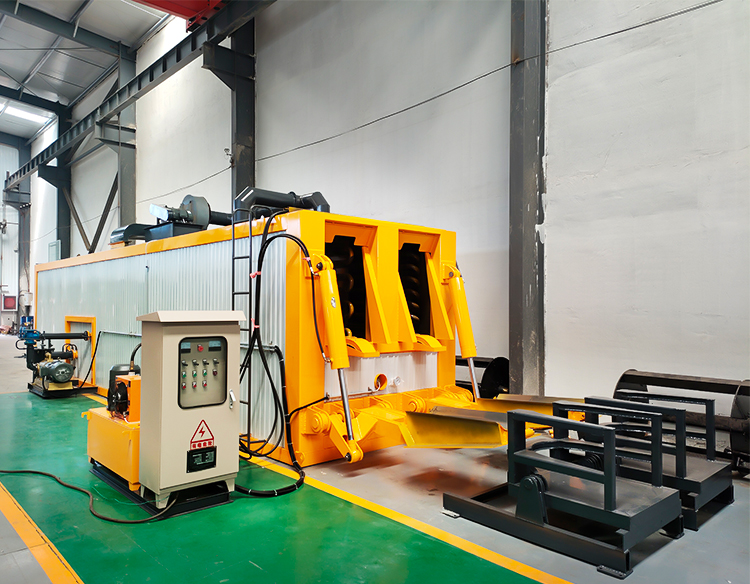

Sinoroader | Bitumen Decanter
Bitumen decanter is designed to extract the solid bitumen from the barrels, bags, and wooden cases, or something like that by melting method.

BD series Bitumen decanter is our company's key R&D equipment. After continuous experiment and improvement, now we are providing two types of bitumen decanter to customers. One is the direct-heating form of bitumen melting machine, and the equipment is burned through the burner. Diesel or natural gas provides heat for melting and melting of the bitumen; one is to heat and melt the bitumen by heat radiation from the thermal oil in the thermal oil furnace.

& 20s Turning Barrel Into Mixer

& Automatically Reverses Oil Barrel

& Internal Circulation Function

& Automatic Slag Removal

& Convenient Relocation


Main Features & Advantage:
1.Turning over the barrel and turning the barrel into mixer can be completed in one time, single bitumen decanting process takes less than 20s.
2.The machine automatically reverses the oil barrel instead of manually turning over the oil barrel, which greatly reduces the labor intensity of the workers.
3.The bitumen pump set has an internal circulation function to optimize the heat transfer coefficient and increase the bitumen melting speed.
4.The electrical operating system uses in both manual and automatic ways.
5.Hydraulic cylinder speed can be adjusted according to actual needs.
6.Automatic slag removal: The equipment has automatic slag removal function. The asphalt pipeline system is provided with a filtering device, which can automatically remove the slag of the barreled bitumen through the filtration of the filter.
7.Environmental protection: closed structure, no pollution.
8.Adaptability: It can be customized according to various sizes of asphalt drums.
9.Convenient relocation: The whole machine adopts modular design and compact structure, which is convenient for relocation and quick assembly.

Sinoroader | Hydraulic Barrel Tumbling System
This system consists of a platform, a barrel arm and a hydraulic power units.
Use a forklift to place the over-opened oil barrel on the platform. The barrel arm is hydraulically driven to descend the mechanical collision platform, the platform is turned over, and the oil barrel falls onto the barrel arm. The hydraulically driven barrel arm pushes the bucket up to the machine body.
The hydraulic pumping station uses a motor-driven hydraulic pump to provide power to the equipment.


Sinoroader | Barrel-melting Body Bitumen Decanter,Drummed Bitumen Decanter,Hydraulic Bitumen Decanter,Drummed Bitumen Melting Machine.
In order to ensure the heat-dissipation efficiency and prevent heat loss,the device is completely insulated with 100 mm rock wool.
The inside of the equipment is divided into upper and lower rooms. The upper room is for heating the bitumen barrel. The upper chamber temperature is kept at about 70 degrees.The bitumen in the barrel is softened by heat and flows out to the lower chamber of the equipment. The melted bitumen continues to be heated in the lower chamber to pumping temperature (120℃).

Sinoroader | Bitumen Heating system
In the hot oil heating bitumen decanter ,all the heating of the bitumen is done by thermal oil; the equipment with the burner, the heating of the bitumen barrel is completed by the thermal oil, and the heating of the melted bitumen is through the hot steam generated by the burner.


Sinoroader | Pump Set and Bitumen Piping System
The bitumen pump set adopts a screw pump, and cooperates with the heat preservation three-way valve to complete the pumping and internal circulation functions. In the bitumen pipeline system, a filtering device is provided to automatically remove the barreled bitumen slag. The burner heating device is equipped with a heat-conducting oil pump to accelerate the heat-conducting oil circulation and accelerate the heat exchange rate between the heat-conducting oil on the upper part of the equipment and the bitumen drum.


Sinoroader | Electrical Control System
The electrical operating system adopts manual and automatic methods. You can switch freely according to your needs








Quantity of Asphalt Buckets



Asphalt Pool Capacity(m³)



Bucket Way


Heating Method

Thermal Oil








Please enter a valid email address.


    Q How Does A Bitumen Decanter Work?

    2020-06-12 10:18
    A Good day,Decanting Process In brief, there are 3 steps of bitumen decanting process, and it’s effortless to understand. Step1. Insert drummed or bagged bitumen into the decanter by using arms that are hydraulically operated or electrical hoist on the beam of gantry crane. Step2. A network of pipelines is surrounding the barrels moved into the heating chamber. It carries thermal oil. When bitumen becomes melted, it drops down to a melted bitumen pool below. Step3. Bitumen pump starts running and pumps the melted bitumen into waiting trucks or bitumen storage tanks.

    Q Does it decanting bag bitumen?

    2020-04-01 09:53
    A Hi, thanks for leaving message. This one on our website is bitumen drum decanter. If you want to melt bag bitumen, we will send you the details to your email, please check.

    Q how long is the warranty time?

    2020-03-17 17:28
    A 15 months

    Q Can the equipment be loaded into the container?

    2020-02-25 10:17
    A Yes, a 40HQ is needed.

    Q how much is the bitumen decanter?

    2020-02-21 10:37
    A Dear, which capacity do you need? we have 6-10t/h capacities, just tell us your requirements, then we send you the quotes.
