This machine adopts the international leading crusher, it is a new jaw crusher which has been optimized and manufactured from the aspects of structure, material selection, process and assembly, etc.
Introduction
This machine adopts the international leading crusher, it is a new jaw crusher which has been optimized and manufactured from the aspects of structure, material selection, process and assembly, etc. Its structure is unique, reliable operation, simple operation, large crushing ratio, and it is the preferred equipment for crushing all kinds of hard and strong corrosive rocks.
Advantages
1.Sturdy structure: modular design, easy to replace, high fatigue strength, better impact resistance
2.Unique cavity: V-symmetrical crushing cavity design, deep crushing cavity, small biting Angle, large stroke, so that the processing capacity is greater, lower energy consumption, greater crushing ratio;
3.High quality moving-jaw assembly: the moving-jaw assembly adopts forged heavy-duty eccentric shaft, high quality heavy-duty self-aligning roller bearing and optimized by finite element analysis, which ensures the moving-jaw assembly's impact resistance and high stability, labyrinth seal, making it more effective in lubrication and better in stability
4.The higher speed increases the crushing frequency of the passing quantity and material, and greatly increases the output
5.Integrated motor installation, electric machine stand and crushing frame integrated installation to reduce the crusher space and triangular belt length
6.Intelligent wireless remote control device is adopted to walk on the crawler, which can act as the remote control to operate the ordinary flatbed trailer on and off, so as to realize fast shift operation.

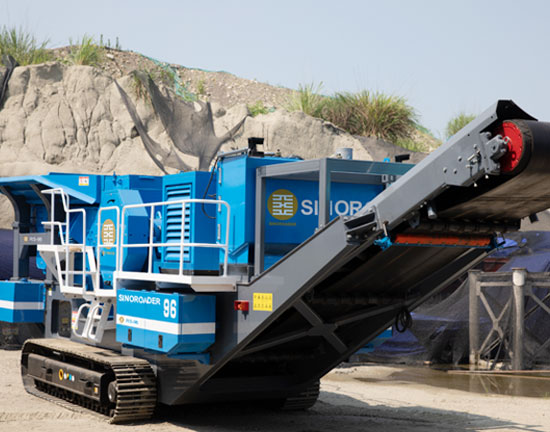

SR-96 Full Hydraulic Mobile Jaw Crusher Plant |
|||
Vibrating Feeder |
Diesel Engine |
||
Capacity(m³) |
6 |
Brand |
Cummins |
Materials |
Q345 steel & wear-resistant steel |
Power(kW) |
264 |
Height(mm) |
3450 |
Control System |
The electro-hydraulic integrated, wireless remote control |
Feeder Mouth Size(mm) |
580*930 |
Transportation Size |
|
belt sheave Diameter(mm) |
φ1100 |
Total Length(mm) |
13600 |
Working capacity(t/h) |
150-250 |
Total Height (mm) |
3450 |
Main Conveyor Size(mm) |
10000*1000 |
Total Width(mm) |
2900 |
Output Height(mm) |
3200 |
Working Size |
|
Walk unit size(mm) |
4300*500 |
Total Length(mm) |
13600 |
Walk Speed(m/min) |
12.5-20 |
Total Height (mm) |
3450 |
Jaw Crusher |
Total Width(mm) |
4500 |
|
Model |
SR-96 |
Total Weight(t) |
35 |
Max. input size(mm) | 800 | ||
Weight(t) | 25 |
