Belt Feeding Concrete Batching Plant

Belt Feeding Concrete Batching Plant

Model:HZS

Production Capacity:Qingdao

Belt type concrete batching plant has characteristics of stable concrete transportation, precise materials batching and high working efficiency.

Description

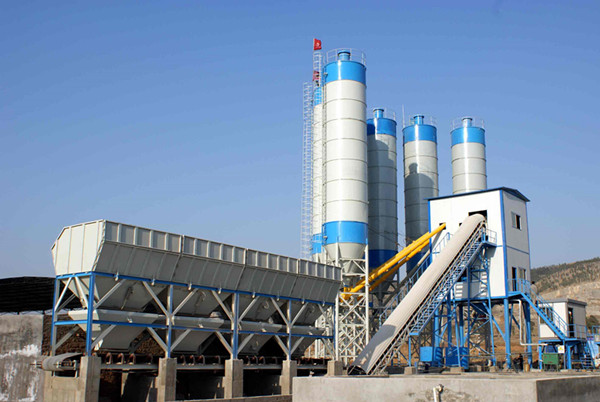

Belt type concrete batching plant has characteristics of stable concrete transportation, precise materials batching and high working efficiency. Therefore it has wide application in commercial concrete production. In the structure, it has long belt to transport batched aggregate, thus it has large land occupation. If you want to invest such a concrete production equipment, you need to prepare a large space.

What are compositions of belt type concrete batching plant

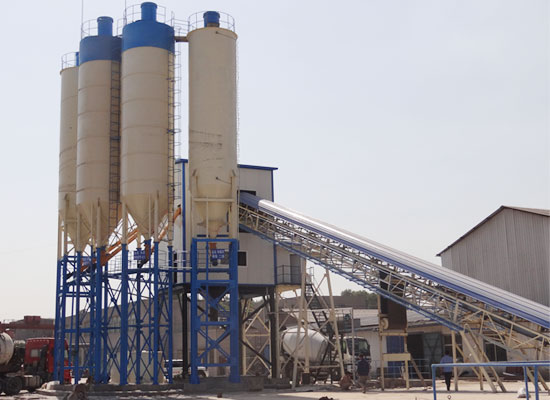

This type belt conveyor concrete mixing plant consists of four-bin aggregate batching machine, belt conveyor, waiting bin weighing system, concrete mixer machine, cement silo, screw conveyor and control system. Discharging height is commonly 4.2m, length of screw conveyor is 8m, the height of equipped cement silo is 7.4m. The amount of screw conveyor and cement silos are depend on users’ needs.

1. Belt conveyor. It is made up of steel angle. To make it convenient for assemble and transport, it is usually made into 6 meters per section. What’s more, to realize convenient installation and maintenance, at the two sides of belt conveyor, there are maintenance platform with guard rail about 600mm wide.

2. Waiting bin is on the second floor platform of the mixer machine, which is to momentarily store the batched aggregate.

3. Cement silo in ready mixed belt type concrete batching plant has outrigger, electric dust collector, safe valve, broken arch, ladder, guard rail, manually butterfly valve, maintenance platform and upper and lower level. Note: In the above AJ-60 belt conveyor batching plant, the distance between spiral feed port and discharge port is 8 meters, and the unloading height of cement warehouse is 7.4 meters.

4. We use twin shaft mixer or planetary concrete mixer as the mixing machine, realize manually cleaning, no residue.

5. Additive scale adopts anti-leakage technology to ensure the safety of concrete production. Water balance adopts supercharging and discharging technology, which can easily add or subtract water and ensure the control of concrete collapse degree,

6. PLC control system is easy to operate, it can achieve stable performance and intuitive production condition.

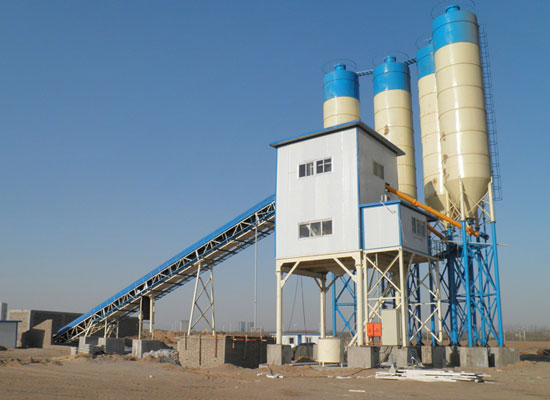

Belt-Feeding-Concrete-Batch-Plant

How about maintenance of belt concrete batching plant

Actually, not all manufacturers will tell you details about daily maintenance, but Sinoroader can do it, if you buy from Sinoroader, they will tell you more and detailed maintenance tips, which is indeed a reliable belt conveyor type concrete plant manufacturer.

1. When working two to four hours, it is necessary to inject main engine grease nozzle oil about 10ml.

2. Regularly grease the gears of main engine and batching machine.

3. The new reducer can work for 200 hours and replace all kinds of lubricating oil as required. After that, it can be changed every 2,000 hours.

In the end, every day after work, it is also important for operator to clean the belt conveyor batching plant. While client will usually clean the mixing drum, but ignore to clean the cement feed port. If the cement is not cleaned for a long time, it will not enter the mixer smoothly.


Technical Parameters

Model

HZS60

HZS90

HZS120/2HZS120

HZS180/2HZS180

Theoretical capacity(m³/h)

60

90

120 / 2×120

180 / 2×180

Mixer

Model

JS1000

JS1500

JS2000

JS3000

Power(KW)

2×18.5

2×30

2×37 / 4×37

2×55 / 4×55

Discharge capacity(m³)

1

1.5

2

3

Max.aggregate size(gravel/pebble)(mm)

≤60/80

≤60/80

≤60/80

≤60/80

Aggregate bins

Volumes

12

12

20 / 2×20

20 / 2×20

Belt conveyor capacity(t/h)

300

450

600

800

Weighing scope

Aggregate(kg)

2500±2%

3000±2%

4×(2000±2%)

4×(3000±2%)

Cement(kg)

500±1%

800±1%

1000±1%

1500±1%

Coal ash(kg)

150±1%

200±1%

400±1%

600±1%

Water(kg)

200±1%

300±1%

400±1%

600±1%

Additive(kg)

20±1%

30±1%

40±1%

60±1%

Discharging height(m)

3.8

3.8

3.8

3.8




HAVE QUESTIONS?
PLEASE LEAVE YOUR MESSAGE
Please enter a valid email address.
*
*

FAQ

    Q Is Ready Mix Concrete good?

    2020-03-19 10:24
    A Hello,it's one type of controlled concrete having high work efficiency. By this process also we achieve a good quality assurance because proper batching, mixing and designing is being done . But in case of normal concrete it is mixed in the site of work . This type of concrete is also known as in-si-tu concrete mix.

    Q How many types of batching plants are there?

    2020-01-16 09:51
    A There are two main types of concrete plants: Dry mix plants and Wet mix plants, and also plants that contain both a transit mix side and a central mix side while utilizing common material storage points.

    Q What is a ready mix concrete plant?

    2020-01-15 09:52
    A Ready mixed refers to concrete that is batched for delivery from a central plant instead of being mixed on the job site.

    Q What is the feeding method of aggregate in concrete mixing plant?

    2019-11-18 15:43
    A We have two kinds of aggregate conveying methods: bucket type and belt type.

    Q How many bins the feeding system has ?

    2019-11-12 10:06
    A Usually 4 bins , but it is adjuestable according to the request of customer.
