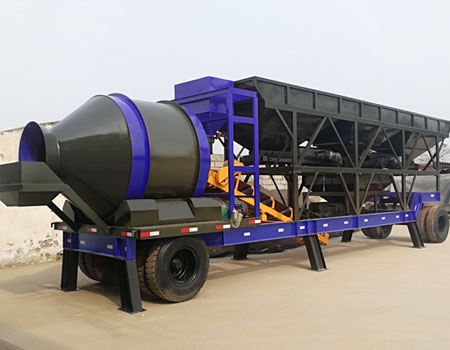

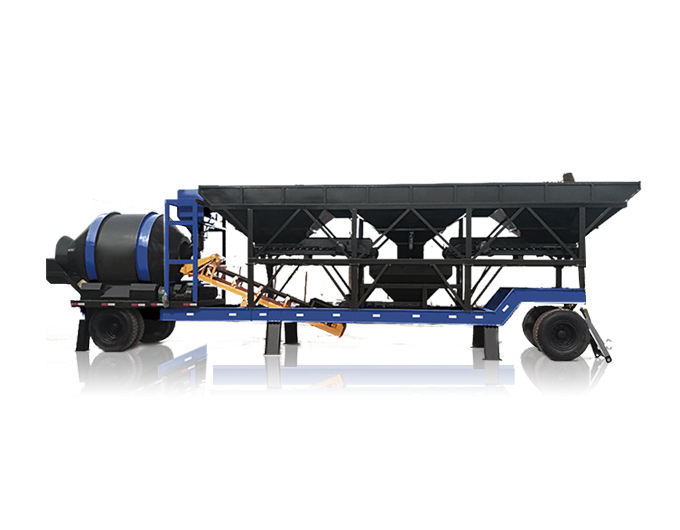

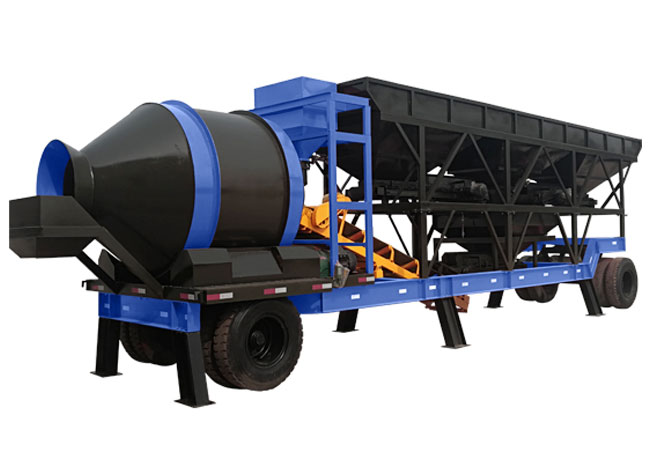

YHZM/YHZS Mobile Concrete Batching Plant:
Mobile concrete batching plant with drum mixer/twin-shaft mixer, which is self-falling type bipyramid reversed discharging concrete mixing machine.
Aggregate batching and transferring is automatic and precise;
Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;

The whole plant chassis can be moved easily, don't need to be separated and assembled;

This plant is designed to work without foundation, even cooperate working with horizontal cement silo;

Features Of YHZM/YHZS Mobile Concrete Batching Plant:
Rapid and easily to assemble and disassemble, conveniently to transport.
All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.
The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
Top-quality configuration, high reliability, accurate measurement, easy operation.
The main electric components on concrete mixer reducers, scale load cells and control system are famous brands, which can reduce the failure rate and increase the scale accurate of the equipment.

Mobile concrete batching plant
Principles of Mobile Concrete Batching Plant:
Mobile concrete batching plant is consist of aggregate loading system, electric auto-measurement system. The core of the whole system is the auto-measurement controlled by computer, which will operate the feeding quantity of cement, sand, gravel, keep the mixture ratio of concrete strictly, to ensure the production quality.
The system works by high-tech of mechanical and electrical integration, establish the auto-running of electronic weighing and feeding trolley and chain procedures. It will also effective organized the generally used machinery in the construction enterprises, such as the concrete mixer, engineering vehicles, belt conveyors, etc, play their best performance.


Technical Parameters Of YHZM/YHZS Mobile Drum Concrete Batching Plant




Aggregate Machine


Discharging Height

Moving Speed




PLD1200 (2 bins)

Electrical Semi-auto






PLD1600 (2 or 3 bins)

Please enter a valid email address.


    Q What is weight batching and volume batching of concrete?

    2020-03-04 13:30
    A In general batching is the process of measuring and combining the ingredients of concrete (cement, water, sand, aggregates) as per the mix design.Traditionally batching is done by volume. Batching accuracy is important. It is however recommended to do weigh batching rather than volume batching.

    Q How many types of batching plants are there?

    2020-03-03 10:00
    A There are two main types of concrete plants: Dry mix plants and Wet mix plants, and also plants that contain both a transit mix side and a central mix side while utilizing common material storage points.

    Q What is a batching plant used for?

    2019-12-11 13:54
    A A Concrete Batching Plant is a machine to manufacture Concrete from its ingredients viz Cement, Crushed Stone, Sand, Water and Admixture Chemicals. Sometimes additives like GGBS (Ground granulated blast Furnace Slag), Fly Ash or Micro-silica are added to change the characteristics of the end product.
Mobile Concrete Batching Plant
