Hook-Type Bitumen Decanter

Hook-Type Bitumen Decanter

Model:Hydraulic Drummed Bitumen Decanter

Production Capacity:6t/h-10t/h

Fast Turning
Internal Circulation Function
Automatic Slag Removal
Convenient Relocation

When using the asphalt heat preservation pump, we must formulate strict technical maintenance specifications.

Description

Bitumen decanter is designed to extract the solid bitumen from the barrels, bags, and wooden cases, or something like that by melting method.

rely on a small crane to lift the barrel to the barrel-in position, and push it into the melting chamber by a Electric cylinder to remove the asphalt from the barrel.

Heat Transfer Coefficient According To The Working Conditions

Good Insulation Effect And Saves Energy
Automatic Slag Removal
Convenient Relocation




4

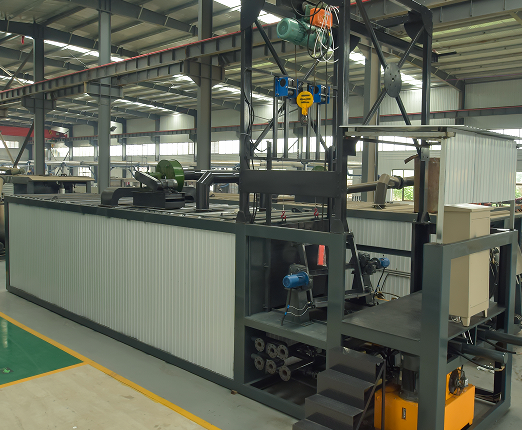

The hoisting mechanism adopts a cantilever structure, and the asphalt barrel is hoisted by an electric hoist, and the asphalt barrel is placed on the turning platform by the movement of the rotary hoist.

1

The operation electrical control system can automatically turn over the barrel through the hydraulic device to make the asphalt barrel upside down, so that the asphalt can flow out of barrel.

2

The asphalt pipeline system is provided with a filtering device, which can automatically remove the slag of the barreled bitumen through the filtration of the filter.

4

Hydraulic cylinder speed can be adjusted according to actual needs.

1

The bitumen pump set has an internal circulation function to optimize the heat transfer coefficient and increase the bitumen melting speed.

2

The fully automatic hydraulic cylinder pushes the barrel into the asphalt melting chamber, which is easy to operate.

Technical Parameters

Model

HBD

HBD

HBD

Productivity(t/h)

2-3

3-4

4-5

Quantity of Asphalt Buckets

24

30

36

Asphalt Pool Capacity(m³)

12

15

18

Bucket Way

Hydraulic

Heating Method

Thermal Oil/Burner

Thermal Oil/Burner

Thermal Oil/Burner

Power(Kw)

14/19

14/19

14/19

Dimensions(mm)

8000X2250X2450

 10000*2250*2450

11800X2250X2450


HAVE QUESTIONS?
PLEASE LEAVE YOUR MESSAGE
Please enter a valid email address.
*
*

FAQ

    Q How many drums can put into the decanter at once.

    2022-10-14 16:47
    A Accoring to your demand, in normal case it can melt 40 drums at once

    Q What's the heating method?

    2022-10-13 16:01
    A Directly diseal burner heating or thermal oil furance heating

    Q what's the capacity for the Hydraulic Drummed Bitumen Decanter?

    2022-10-13 16:00
    A 4-10T/H
