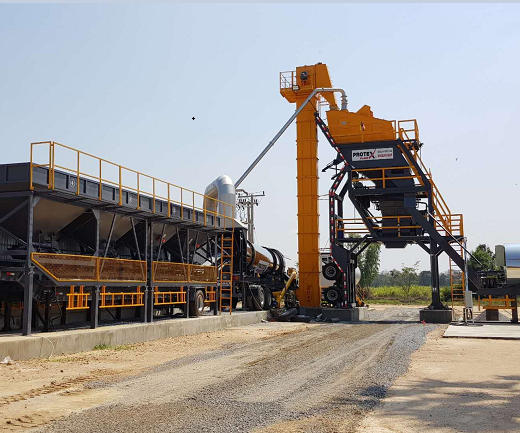

YLB Mobile Batch Asphalt Mix Plant
Model:YLB1500
Production Capacity:80t/h-160t/h
Sinoroader specializes in asphalt batch mixing plant, drum mix plant, continuous asphalt plant in China.
Description
YLB Series mobile asphalt mixing plant is developed, designed, manufactured and put on sale by Sinoroader Road Construction Machinery. It inherits the advantages of LB series asphalt batch mixing plant, and adds new elements including: containerized size, modular design and trailer and mobile chassis which make it possible for container transportation, fast mobilization and relocation.
YLB Asphalt Plant is designed for small and medium-sized pavement project which need frequent relocation. Complete plant can be dismantled and reinstalled in 5 days (not including the transportation period).
- Mobile Asphalt Mixing Plant
- Easy To Installation
- Fast Relocation
- Precise Screening
- Accurate Weighing
|

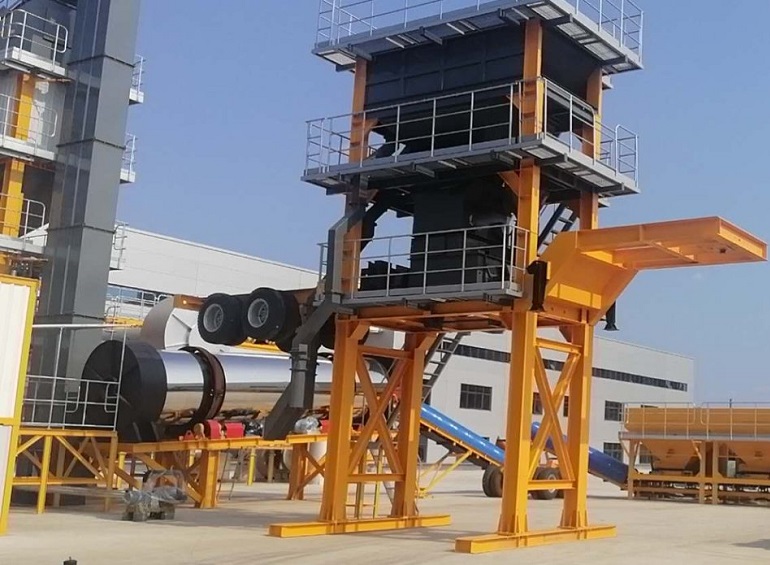

Mixing Tower Module
Mixing tower is on one mobile module, can be pulled by a tractor. |
Cold Feeder
Cold aggregate feeding system is on one mobile module, can be pulled by a tractor. |
Baghouse Filter
Bag house dust collector is one mobile module, can be pulled by a tractor. |
|
Drying Drum
Drying drum is one mobile module, can be pulled by a tractor. |
Bitumen Pump
Brand three-screw pump specially for asphalt mixing plant，It can be realized the delivery on high-temperature and high-viscosity media. |
Mobile Chassis
Extra mobile chassis are available upon request so as to move the other small devices. |
Technical Parameters
|
Model |
YLB1000 |
YLB1500 |
YLB2000 |
|
|
Capacity |
80t/h |
120t/h |
160t/h |
|
|
Mixer Capacity |
1000kg/batch |
1500kg/batch |
2000kg/batch |
|
|
Fuel Consumption |
Diesel consumption: 5.5-7 kg/ton |
|||
|
Weighing Precision |
Hot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2% |
|||
|
Hot Asphalt Temperature |
130℃-165℃ (adjustable) |
|||
|
Air Emissions |
≤ 20mg/Nm³ |
|||
|
Working Noise |
≤ 70db(A) |
|||
|
Operation |
Full Auto/Manual Operation |
|||
|
Installation Power |
241kW |
330kW |
412kW |
|
|
Voltage |
220V/380V-50Hz (adjustable) |
|||
|
Plant Covering Area |
Length |
40m |
40m |
42m |
|
Width |
28m |
32m |
32m |
|
|
Height |
15m |
16m |
16m |
|
|
Documents |
Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate. |
|||
