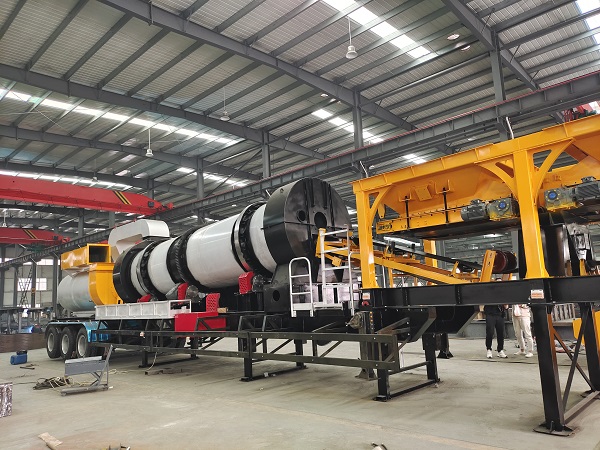

Asphalt Mixing Plant (tractor mobile)

Asphalt Mixing Plant (tractor mobile)

Model:MR

Production Capacity:40t/h-100t/h

Wide Application
Low Maintenance Cost
Energy Consumption Saving
Easy Installation

continuous mobile asphalt batching plant is a new design asphalt mixing plant ,it can continuou asphalt concrete pavement.Meet highway construction standards

Description

VIEW VIDEO

    Sinoroader mobile continuous asphalt drum mix plant is one type of continuous asphalt plant, with characteristics of simple structure, low    cost and convenient maintain.This series asphalt drum mixing plant with capacity from40-100t/h.It's easy to transport, transfer site, and recommissioning, also it is equipped with high level dust filter, more environmentally friendly.

    New structure design, continuous mixing and discharging
    aggregate can be accurately weighed and proportioned
    Mineral powder can be added
    High Cost-effective


    The mobile continuous asphalt plant adopts modular designIntegrated mode, the traction head can be pulled away directly,easy installation and maintenance, fast transportation. It is mainly used for the construction of highways,  municipal roads, airports and ports.



Cold Aggregate Feed System


4

①Modular design, easy to install and transport;

②The cold aggregate feeder is equipped with frequency conversion speed control, synchronous proportional automatic control and adjustment, safe and reliable;

③The hopper is equipped with a screen, the two fines hoppers will automatically vibrate when the material blocked, the lack of material will alarm, and the discharge door can be adjusted;

④The belt conveyor is equipped with correction and cleaning devices;


Drying System


1

①The repeatedly optimized design of the lifting blade and the stainless steel insulation layer can effectively reduce the heat loss of the drying drum, save fuel consumption and greatly improve the thermal efficiency;

②The burning zone of the drying drum adopts wear-resistant and heat-resistant materials with long service life;

③Gas secondary ignition, high reliability of ignition;

④Unique purge pipeline, effectively prevent oil circuit blockage.


Dust Collection System


2

Utilization of water dust removal system to reduce environmental pollution caused by exhaust emissions;

②The air door of the induced draft fan is automatically adjusted to ensure the constant negative pressure of the drying drum.



Lifting System


6

The elevator plate chain is made of high-strength wear-resistant materials, and the shell liner is made of wear-resistant steel plate, which has a long service life.



Hot Finished Asphalt Storage Silo


3

The upper equipped level sensing device, the discharge port is equipped with a temperature sensor; the door opening mechanism adopts a pneumatic mechanism



Electrical Control System


commachinery

①The external dimension of the control room is 2700mm*880mm*2000mm imitating a container structure, the wall is made of color steel plate, double-layer insulation, color steel doors and windows; split air conditioner; beautiful appearance, convenient hoisting and transportation, and good sealing performance;





Technical Parameters

<
Model No.

HMA-TM40

HMA-TM60

HMA-TM120

Rated Capacity 40t/h 60t/h 120t/h
Cold Aggregate Bin(Nos×Volume) 1×4m³,2×2m³ 4×4.5m³ 4×6.5m³
Drum Size(Diameter×Length) 1.2m×5.4m 1.5m×7m 1.8m×9.9m
Dust Removal Water Film Dust Removal
Fuel Light Oil/Heavy Oil/Natural Gas(optional)
Asphalt Heating Direct Heating/Thermal Oil Heating
Ming Type Continuous Drum Mix
Fuel Consumption(standard) 6.5kg/t
Operating Mode Manual,Automatic,Semi-Automatic
Installed Power 88.25 KW 112.5 KW 212.3 KW

HAVE QUESTIONS?
PLEASE LEAVE YOUR MESSAGE
Please enter a valid email address.
*
*

FAQ

    Q What is the dust removal system of the plant?

    2022-09-28 17:19
    A Water dust removal system is standard configuration, we can change it into bag house collector

    Q How many tons per hour for this plant?

    2022-09-27 17:33
    A we have four models, the corresponding capacity is 40tph, 60tph,80tph,100tph

    Q All of the the continuous asphalt mixing plant sub-system on the same chassis?

    2022-09-26 16:23
    A Except for the asphalt tank, the rest is on a same chassis
