SMAP Batch Mix Asphalt Plant

SMAP Batch Mix Asphalt Plant

Model:SMAP

Production Capacity:30t/h ~ 80t/h

Modular Structure
Wide Application
Easy of Operation
Best-Selling

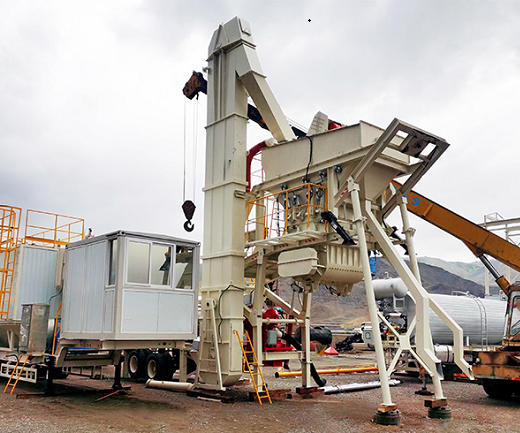

SMAP Mobile asphalt mixing plant is a kind of equipment used for road construction or maintenance, which can mix asphalt with aggregates(such as gravel, sand, etc.) in accordance with a certain proportion to produce asphalt concrete for laying roads.

Description

1_Cold Feed System

1.Cold Feed System

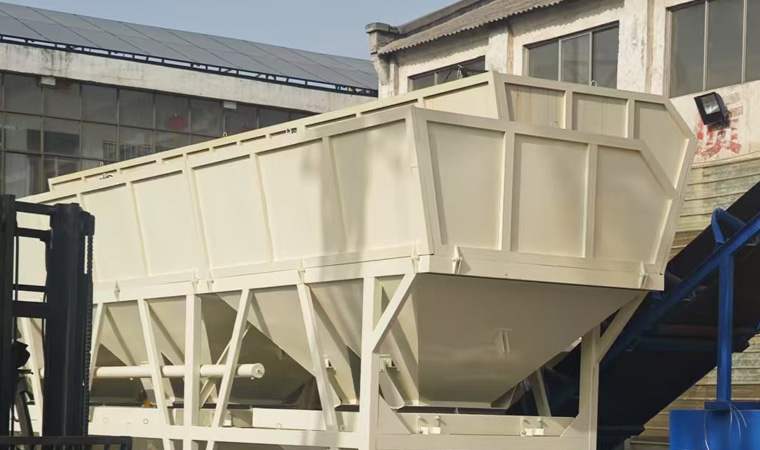

The aggregate feeding hoppers and aggregate collecting belt are mounted on one mobile chassis.
The belt feeder that adopts the frequency speed regulator has long speed range, so it runs smoothly and efficiently.
Each discharging gate of hopper has an alarm for the warning of no aggregate in the bins.
There is a vibrator on the wall of bin to avoid blockage.

On the top of each hopper there is a screen to prevent the entry of bigger aggregate, ensuring the reliability of system.

2_Batch Mixing Tower

2.Batch Mixing Tower

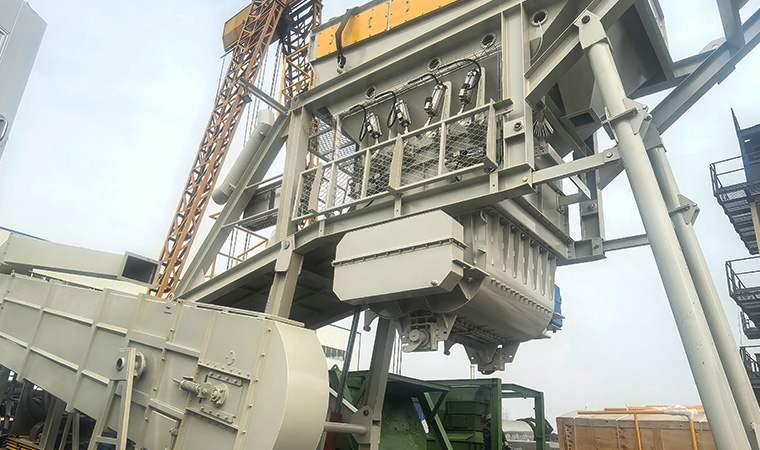

The mixing tower includes the vibration screen, hot aggregate storage bin and weighing hopper, asphalt mixer, bitumen weighing, filler weighing(option). All these parts are mounted on one trailer chassis. Easy for installation and transferring to other worksite after you finished project in one place.
The reducer for the mixer can be domestic brand or imported Germany NORD Brand.

The weighing sensors can be Mettler Toledo, USA brand or Chinese Taiwan brand: Airtac.

3_Drying & Heating System

3.Drying & Heating System

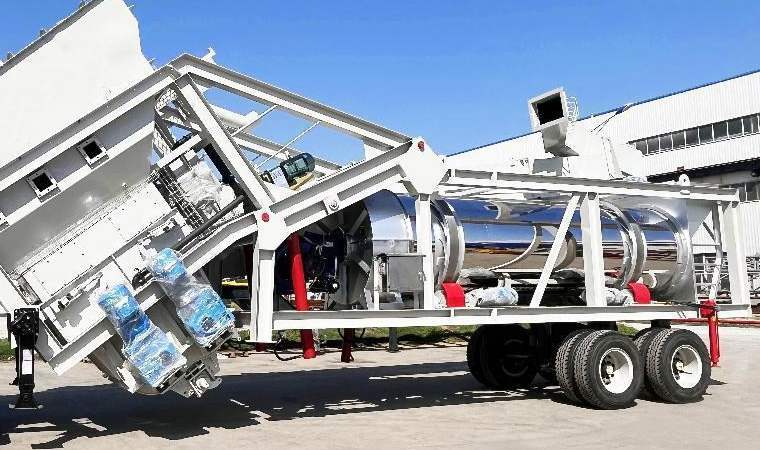

The mobile drum dryer adopts 4 frictional wheels, which is drived by four synchronous motors. It runs smoothly with low noise.
The temperature of the dried aggregate directly influences the temperature of the final product; Drying efficiency directly influences the consumption of the fuel, thereby the reasonable structure is very important. We fully absorbed the abroad advanced technology of mixing and got satisfying effect and realized the anticipated object.

About the oil burner, we have international brand and domestic brand for you to choose.

4_Hot aggregate elevator

4.Hot aggregate elevator

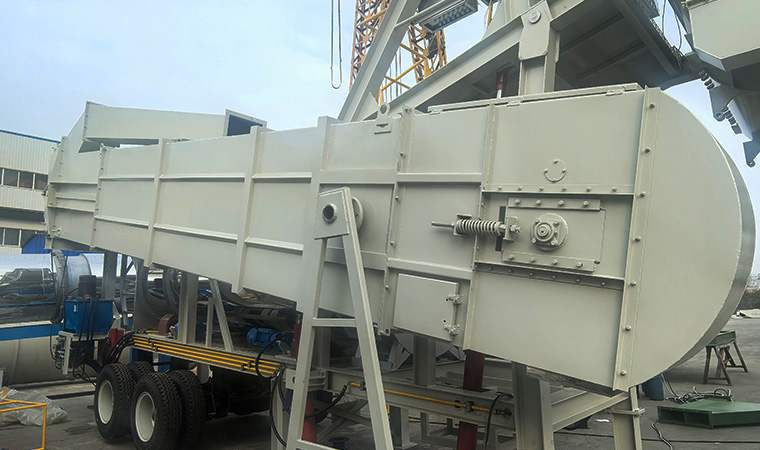

The dedicated elevator for asphalt mixing station provides strong support for the efficient operation of asphalt mixing station with its excellent performance, stable operation, complete safety protection measures and convenient maintenance.

5_Hot aggregate elevator

5.Bitumen Supply system

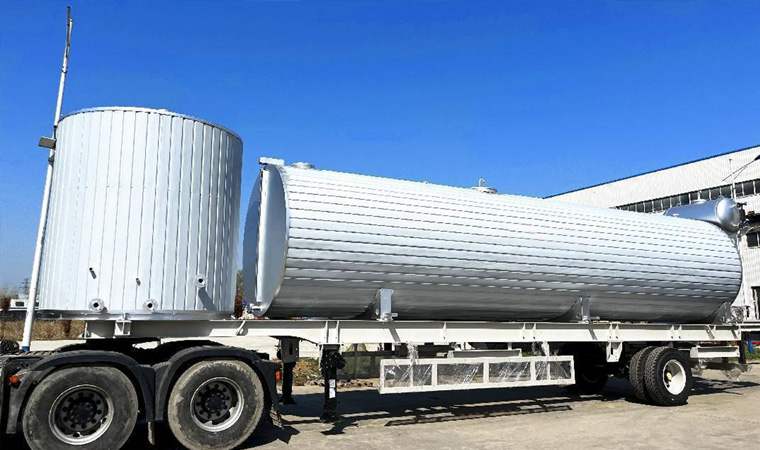

To provide and deliver quantitative bitumen. It consists of bitumen pipe manifold, high viscosity insulated bitumen pump (depend on user’s demand), three-way control valve, bitumen metering hopper, bitumen spray nozzle, insulated sleeve pipe, etc.

6_Baghouse Dust Collection System

6.Baghouse Dust Collection System

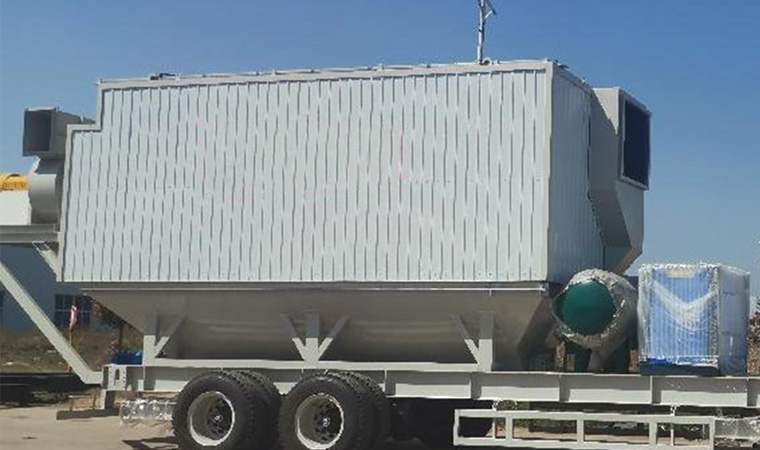

This dust collecting system is equipped with primary gravity dust collector and secondary bag house dust collector. All the collected aggregate grain is conveyed to the hot aggregate elevator for recycling use.
The secondary dust collecting system bag house dust collector. The bags adopt high temperature resistance material. It can work under rated high temperature,it has long life-span and good ventilation. The efficiency of dust collector can reach up to more than 99%,which fully meet environment protection standard.

The collected filler can be recycling used. Of course, if you do not need, it can be discharged by screw conveyor.

7_Central Control System

7.Central Control System
The electric control system adopts advanced electric components (including products of Siemens, Schneider or Omron) which ensures the reliability of long performance. According to the order of start, the driving control wire sets the protecting lines, thus guarantees the reliability and safety of operation. The motor of the belt feeder in the batching process is controlled by frequency speed regulator, so the regulation precision is improved.

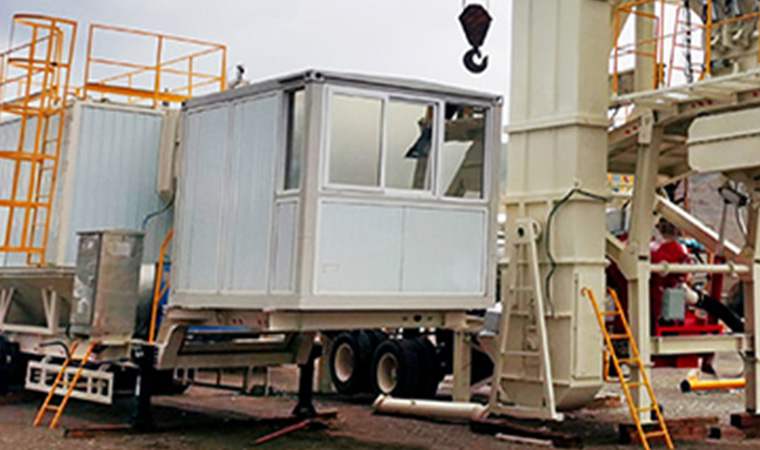

The control room and the diesel tank are mounted in the same chassis to make the full use of the chassis layout.

8_Hydraulic support

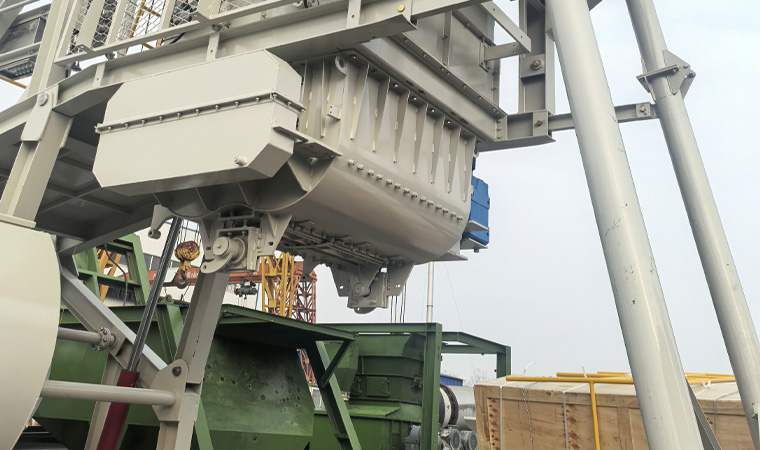

8.Hydraulic support
The outriggers can be quickly folded up during transportation, saving time and effort and facilitating transportation;
When building a site, the building can be quickly erected and put into production quickly, improving efficiency.

Technical Parameters

Model No. SMAP-40E SMAP-60E SMAP-90E
Drying capacity 30t/h-40t/h 50t/h-60t/h 80t/h-90t/h
Capacity 30t/h-40t/h 50t/h-60t/h 80t/h-90t/h
Mixing Type Horizontal Double Shaft Paddle Type Spiral Mixing Device
Mixer Capacity 500kg 800kg 1000kg
Fuel Diesel, Heavy Oil, LNG, coal
Dust collector Gravity Dust Collector + Bag Filter
