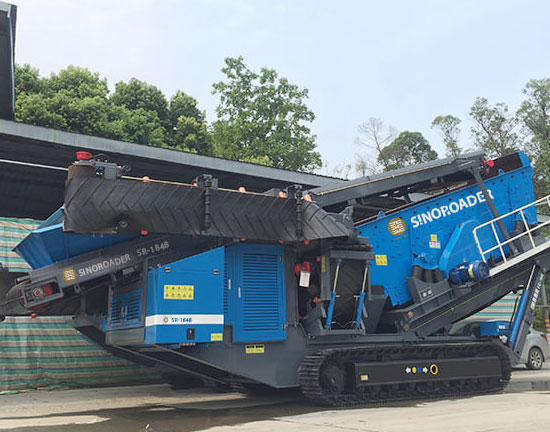

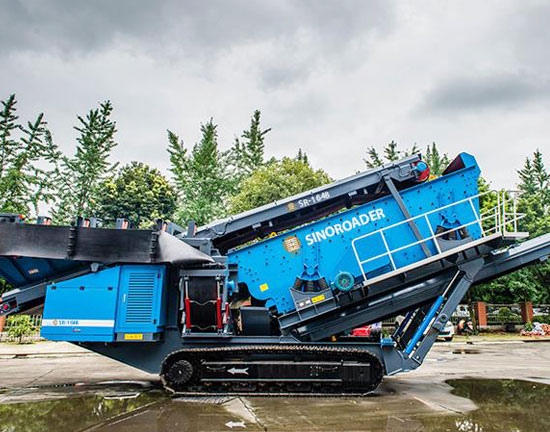

Crawler-Type Mobile Screening System (Full Hydraulic)
Model:
Production Capacity:
Mobile screening system is the ideal choice in many independent or multi-stage screening processes because of its unique dynamic design and process control system optimized, which makes it durable, stable, reliable and efficient.
Description
Introduction
Mobile screening system is the ideal choice in many independent or multi-stage screening processes because of its unique dynamic design and process control system optimized, which makes it durable, stable, reliable and efficient.
Advantages
1.The remote intelligent wireless remote control is adopted to walk on the crawler on its own, without the need of crane, and the flat car can be mounted and lowered by the intelligent remote control directly, so as to realize long-distance transportation and field transfer2.The vibrating screen can be hydraulic lifting, easy to overhaul and replace the screen mesh, and convenient transportation;

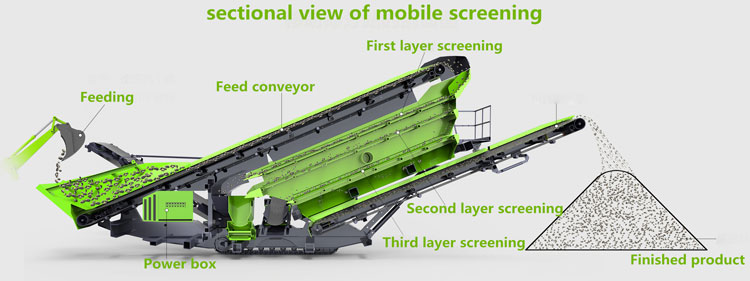

3.The sieving machine can screen the final products of practical value in 4 layers (three-layer sieve), and each conveyor belt of finished material can be folded hydraulically, which can realize complete machine transport;
4.Optimized by dynamic design, with efficient screening ability, can work independently or by multi-section of our company moving series of process flow to work
5.Before the factory is a complete set of screening system, no on-site installation and debugging, can be quickly put into production;
6.The heavy duty sieving machine can be equipped with plate feeding system according to the requirements of customers to realize the sieving efficiency of special materials.
Technical Parameters
|
SR-1648/1848 Full Hydraulic Mobile Screening Plant |
|||
|
Vibrating Screen |
Diesel Engine |
||
|
Size(mm) |
4800*1600 |
Brand |
Cummins |
|
Screen Area |
7.68m³ |
Power(Kw) |
92 |
|
Main Conveyor |
Control System |
The electro-hydraulic integrated, wireless remote control |
|
|
Main Conveyor Size(mm) |
10000*1000 |
Transportation Size |
|
|
Output Height(mm) |
3200 |
Total Length(mm) |
14500 |
|
Working size |
Total Height (mm) |
3450 |
|
|
Total Length(mm) |
155000 |
Total Width(mm) |
3000 |
|
Total Height(mm) |
3450 |
Walk unit |
|
|
Total Width (mm) |
14000 |
Size(mm) |
4150*500 |
|
Total Weight(t) |
30 |
Walk Speed (m/min) |
12.5-20 |
|
Feeder Bins |
Belt Feeder System |
||
|
Capacity(m³) |
10 |
Size(mm) |
6500*800 |
|
Material |
Q345 Steel |
Feeder Capacity |
150-250L/h |
|
Height(mm) |
3300 |
||
