Bitumen Emulsion Equipment Supports Road Construction in Africa

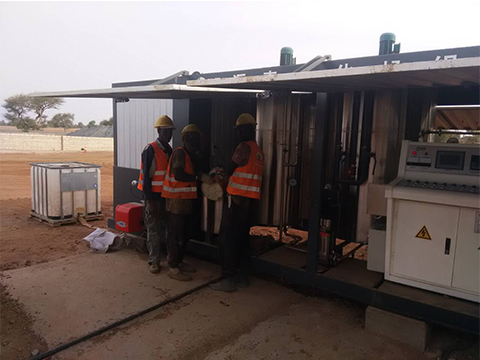

Bitumen emulsifying unit and bitumen heating tank put into use in Africa emulsified bitumen production base.

Bitumen emulsion is widely used in road construction and maintenance:
1. New road construction: prime coat, adhesive coat and seal coat;
2. road maintenance: fog seal, slurry seal, micro surfacing treatment, chip seal, ultra thin wearing layer, pothole rehabilitation and etc.;
3. Road pavement recycling: cold in-place recycling asphalt.

Features:

1. Bitumen pump, soap pump and dosage pump (for emulsifier supply and measurement) are all driven by variable frequency motors, high precision in weighing and dosage;

2.Adopting international famous colloid mill, producing homologous, stable and reliable bitumen emulsion; clearance between rotor and stator of the colloid mill is adjustable, the min. particle size is 1μm, fit for both bitumen emulsion and modified asphalt emulsion production;

3. Two preparation tanks take turn to produce diluted emulsifier solution, ensuring continuous production;

4. Pipes, valves and tanks and other main components are all made by corrosion resistant material, longer service life;

5. PLC control system, supporting automatic and manual operation, easy to operate and 1 operator is enough;

6. The whole plant is a integrated structure and can be put into container, quite easy for transportation and relocation.
