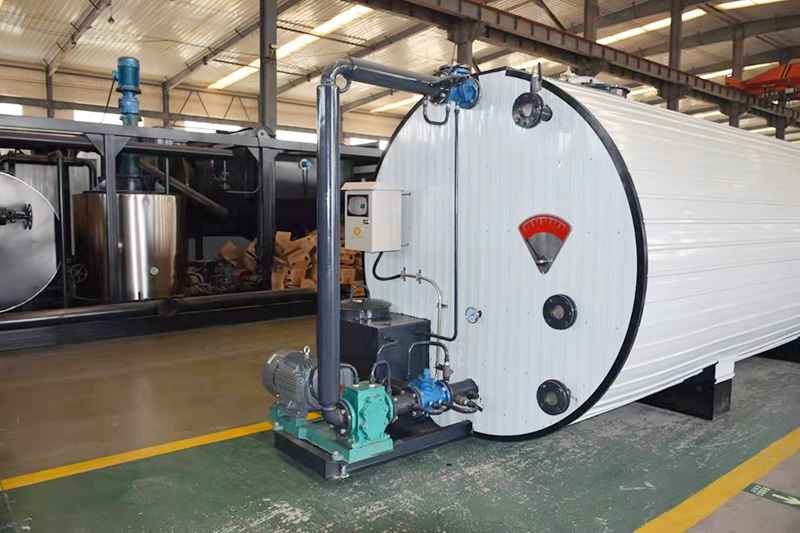

Heat transfer oil heating asphalt storage working principle and advantage.

The heat transfer oil furnace is used as the heat source body, the heat transfer oil is used as the heating medium, and the asphalt is heated to the use temperature by the forced circulation of the hot oil circulation pump.

Overall heating type is suitable for large asphalt transfer warehouse.Supporting use of small and medium-sized asphalt storage and asphalt mixing plants.

Features:

Stable operation, safety, low failure rate and long service life. Local heating to take oil, to avoid the aging phenomenon caused by repeated heating of asphalt, to ensure the quality of asphalt and save energy.

Main Specifications:

Asphalt Storage:10-10000T.

Maximum Production:50-300T/h.

Local Heater Warming Time:≤1.5h.

Note:The first ignition is ≤2.5 hours, the asphalt starts to heat up at 50 °C, and the heat transfer oil temperature is above 160 °C.

Electricity Consumption: 30-120KW.

Tons of bituminous coal consumption: ≤35kg

Insulation effect: 24 hours cooling is not higher than the actual temperature and 10% of the current temperature difference.

Smoke Exhaustion Concentration: ≤200mg/m3

Smoke blackness: (Lingeman level): ≤ 1

The high-speed railway special emulsified asphalt storage tank is the latest emulsified asphalt storage tank developed by our company combined with the characteristics of high-speed railway special emulsified asphalt.

The emulsified asphalt storage tank is composed of an automatic numerical control heater, an automatic numerical control agitator, an automatic temperature control system, a liquid level display device, an electric control system and the like.

The emulsified asphalt storage tank can be conveniently discharged on the emulsified asphalt transport vehicle, can be conveniently loaded onto the asphalt mixer truck, and equipped with a special pump for high-iron emulsified asphalt.

The emulsified asphalt storage tank can automatically or manually turn on the agitator to automatically stir the emulsified asphalt according to the predetermined time.

The emulsified asphalt storage tank can automatically control the temperature of the emulsified asphalt, adopt the latest numerical control technology to sense the temperature of the emulsified asphalt in the tank, and display the temperature in real time, and automatically control the temperature of the emulsified asphalt in the tank.

The emulsified asphalt storage tank develops an efficient and energy-saving emulsified asphalt heating device according to the characteristics of the high-iron special emulsified asphalt, and adjusts the temperature of the emulsified asphalt storage tank in real time to ensure that the temperature of the emulsified asphalt in the emulsified asphalt storage tank reaches the most suitable temperature.
